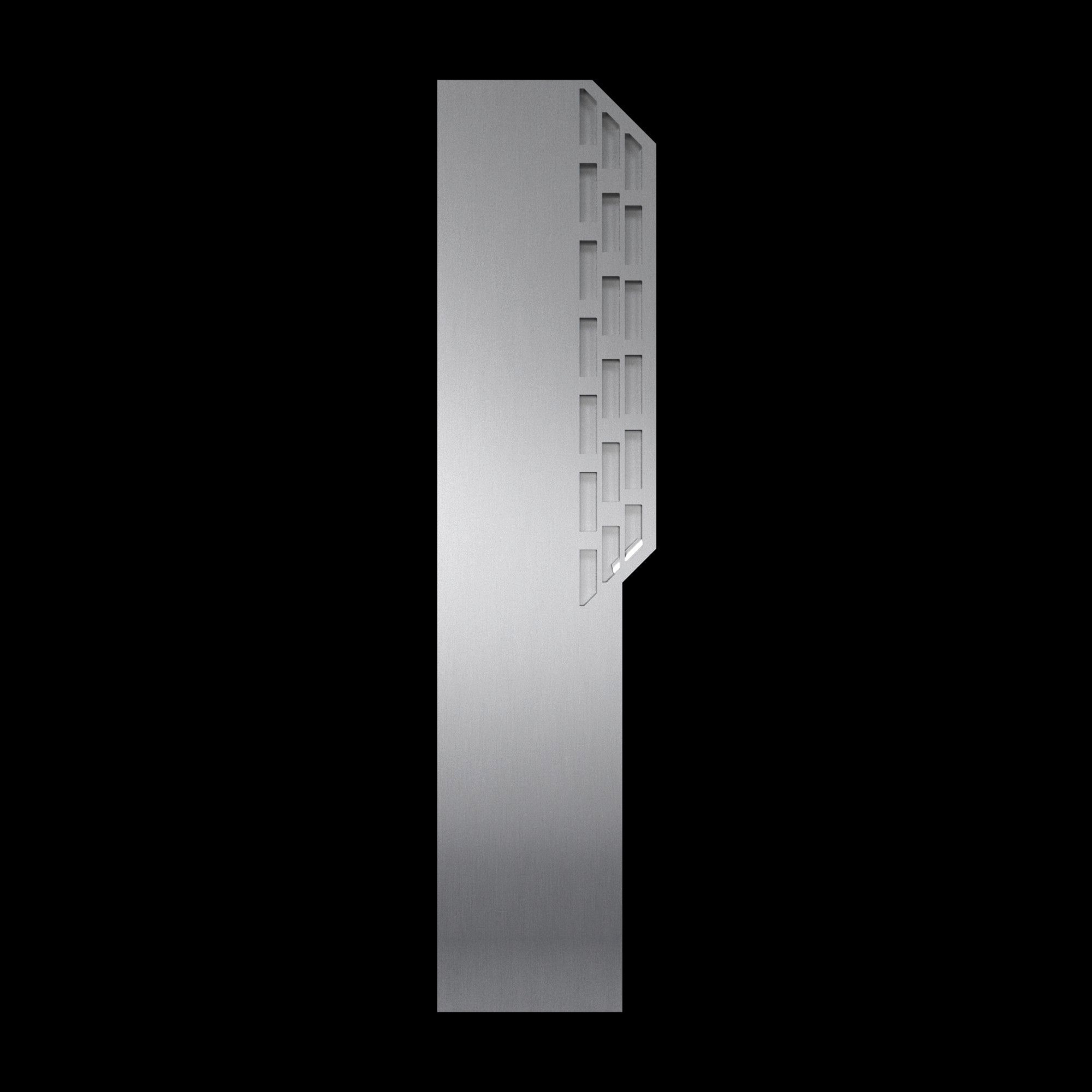

SK 3328544 TopTherm Blue e Wall-Mounted Cooling Unit, NEMA 4X 2.2 kW

Giá bán: Liên hệ

SK cooling unit Blue e, wall-mounted, NEMA 4X, 2.2 kW, 400-460 V, 3~, 50/60 Hz, Stainless steel, WHD: 405 x 1650 x 388 mm

Tình trạng: Còn hàng

Bảo hành:

Địa chỉ

109 Đường N2, Khu dân cư Khang Điền, P. Long Trường, TP HCM, VN

HOTLINE

0917082400

Đặt mua ngay

CATEGORY	DETAILS
Cooling output	L35/L35: 2.05 kW (50 Hz), 2.25 kW (60 Hz) L35/L50: 1.35 kW (50 Hz), 1.5 kW (60 Hz)
Cooling output (BTU/h)	L35/L35: 6,995 BTU/h (50 Hz), 7,677 BTU/h (60 Hz) L35/L50: 4,606 BTU/h (50 Hz), 5,118 BTU/h (60 Hz)
Rated operating voltage	400 V, 3~, 50 Hz 460 V, 3~, 60 Hz
Rated current max.	2.2 A (50 Hz), 2.4 A (60 Hz)
Start-up current (max.)	4.8 A (50 Hz), 5.5 A (60 Hz)
Air throughput	External circuit: 900 m³/h (529.7 cfm) Internal circuit: 900 m³/h (529.7 cfm)
Energy efficiency ratio	EER (L35/L35): 2.25 (50 Hz), 1.95 (60 Hz)
Version	Wall-mounted
Dimensions	405 × 1650 × 388 mm
Dimensions (inch)	Width: 15.9˝ Height: 65˝ Depth: 15.3˝
Protection category IP	External circuit: IP 34 Internal circuit: IP 55
Protection category NEMA	NEMA 4X
Refrigerant / cooling medium	R-513A / 0.9 kg / GWP: 631 / CO₂e: 0.57 t
Refrigerant quantity (lb.)	2 lb.
Temperature control	e-Comfort Controller (factory setting +35 °C)
Operating temp range	10 °C to 50 °C (50 °F to 122 °F)
Storage temp range	-40 °C to 70 °C (-40 °F to 158 °F)
Setting range	20 °C to 50 °C (68 °F to 122 °F)
Rated power Pel	L35/L35: 0.92 kW (50 Hz), 1.15 kW (60 Hz) L35/L50: 1.15 kW (50 Hz), 1.3 kW (60 Hz)
Permissible operating pressure	28 bar (406.1 PSI)
Pre-fuse	Motor circuit-breaker: 6.3…10 A
Packaging unit	1 pc(s).
Weight	Net: 91.5 kg Gross: 95 kg
